Split System
Installations

Not sure how to go about choosing an Air-Conditioner and what kind of installation you need? Look no further! Master Aircon has assembled the below tools and information to help you begin the quote and installation process. Or simply book a quote or service from the buttons provided
https://www.masteraircon.com.au/wp-content/uploads/2018/06/sm8_quote_btn_sml.jpg
https://www.masteraircon.com.au/wp-content/uploads/2018/07/ducted-daikin-aircon-gold-coast.jpg

Quick Reference Chart

This chart is for quick reference and should be used as a guide only. It is based on cooling areas not the sqm(m2) size of your home as you don’t always cool the bathrooms, laundry, pantry, garage and some other spaces. Also it does not allow for other heat sources like western facing windows, and large gatherings of people.

For more information and a comprehensive ducted aircon quote, please call or contact us at Master Aircon.
ROOM SIZE (m) AREA SIZE (m2) 2.4m CEILING 2.7m CEILING 3.0m CEILING
3 x 3 9m2 2kw 2kw 2kw
3 x 4 12m2 2kw 2kw 2.5kw
4 x 4 16m2 2.5kw 2.5kw 3.5kw
3 x 6 18m2 2.5kw 3.5kw 3.5kw
4 x 5 20m2 3.5kw 3.5kw 4kw
5 x 5 25m2 4kw 4kw 5kw
5 x 6 30m2 5kw 5kw 6kw
6 x 6 36m2 6kw 6kw 7kw
6 x 7 42m2 7kw 7kw 8kw
7 x 7 49m2 8kw 8.5kw 9.5kw
7 x 8 56m2 8.5kw 9kw
8 x 8 64m2 9.5kw

Installation Types:

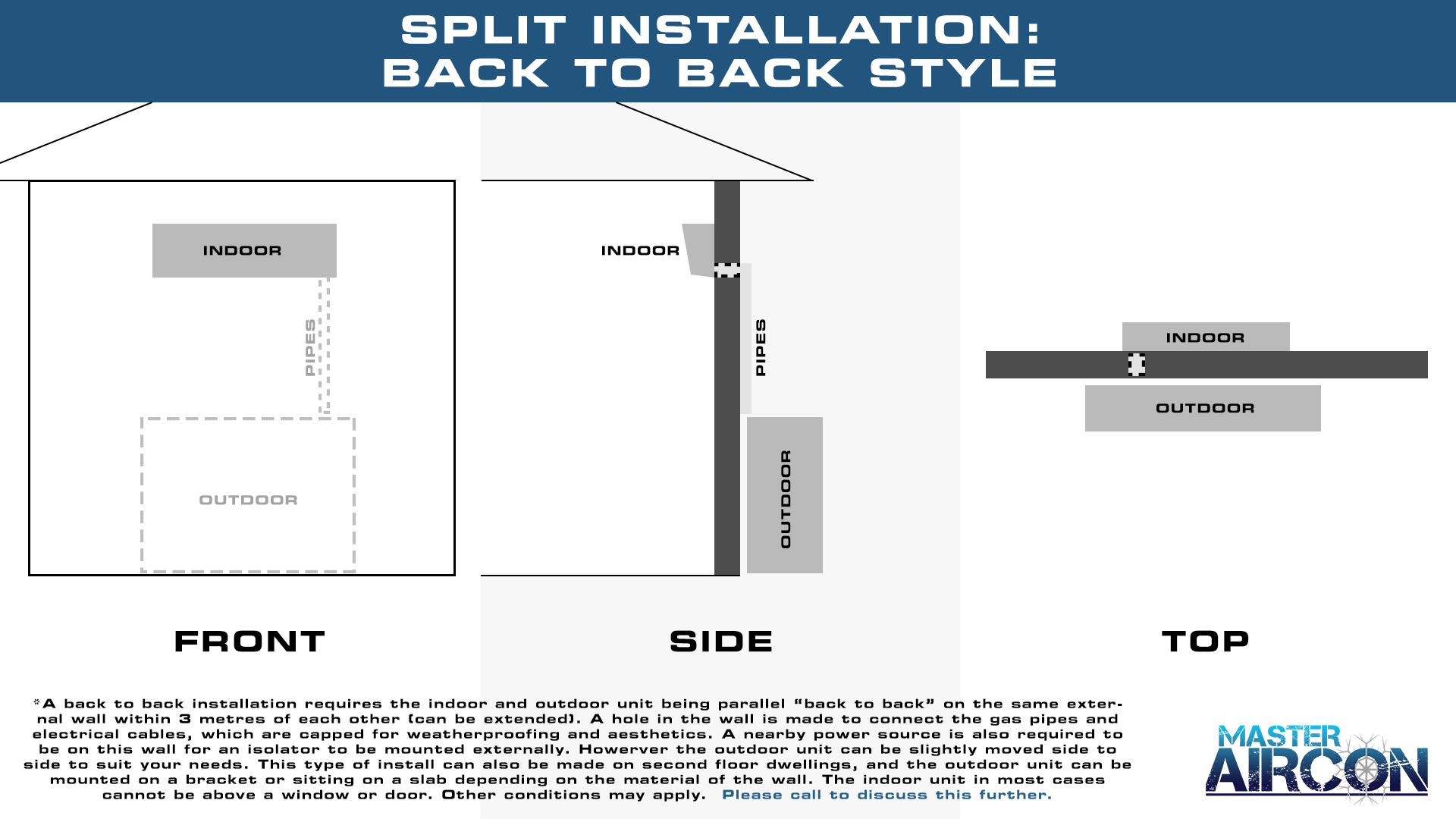

Back to Back Installations

*A typical back to back installation requires the indoor and outdoor unit being parallel “back to back” on the same external wall within 3 metres of each other (can be extended). A hole in the wall is made to connect the gas pipes and electrical cables, which are capped for weatherproofing and aesthetics. A nearby power source is also required to be on this wall for an isolator to be mounted externally.

However the outdoor unit can be slightly moved side to side to suit your needs. This type of install can also be made on second floor dwellings, and the outdoor unit can be mounted on a bracket or sitting on a slab depending on the material of the wall. The indoor unit in most cases cannot be above a window or door.

*Other conditions may apply. Please call or contact us to discuss this further or book a quote.

Back to back Split Air Conditioner installations Gold Coast
Back to Side Installations

*A Back to Side split installation is where the indoor unit is 90 degrees to the outdoor unit. Usually on an internal wall, hard up to the external wall where the outdoor unit is located. Pipes an electrical cable penetrated the side of the unit, goes out through the wall, down the capping and connects to the outdoor unit.

The outdoor unit can be mounted on a bracket or slab depending on your wishes. This can also be done on multi storey dwellings with additional pipe and cables. A power supply is required nearby on the external wall.

*Other conditions may apply. Please call or contact us to discuss this further or book a quote.

Back to Side Split Air Conditioner installations Gold Coast

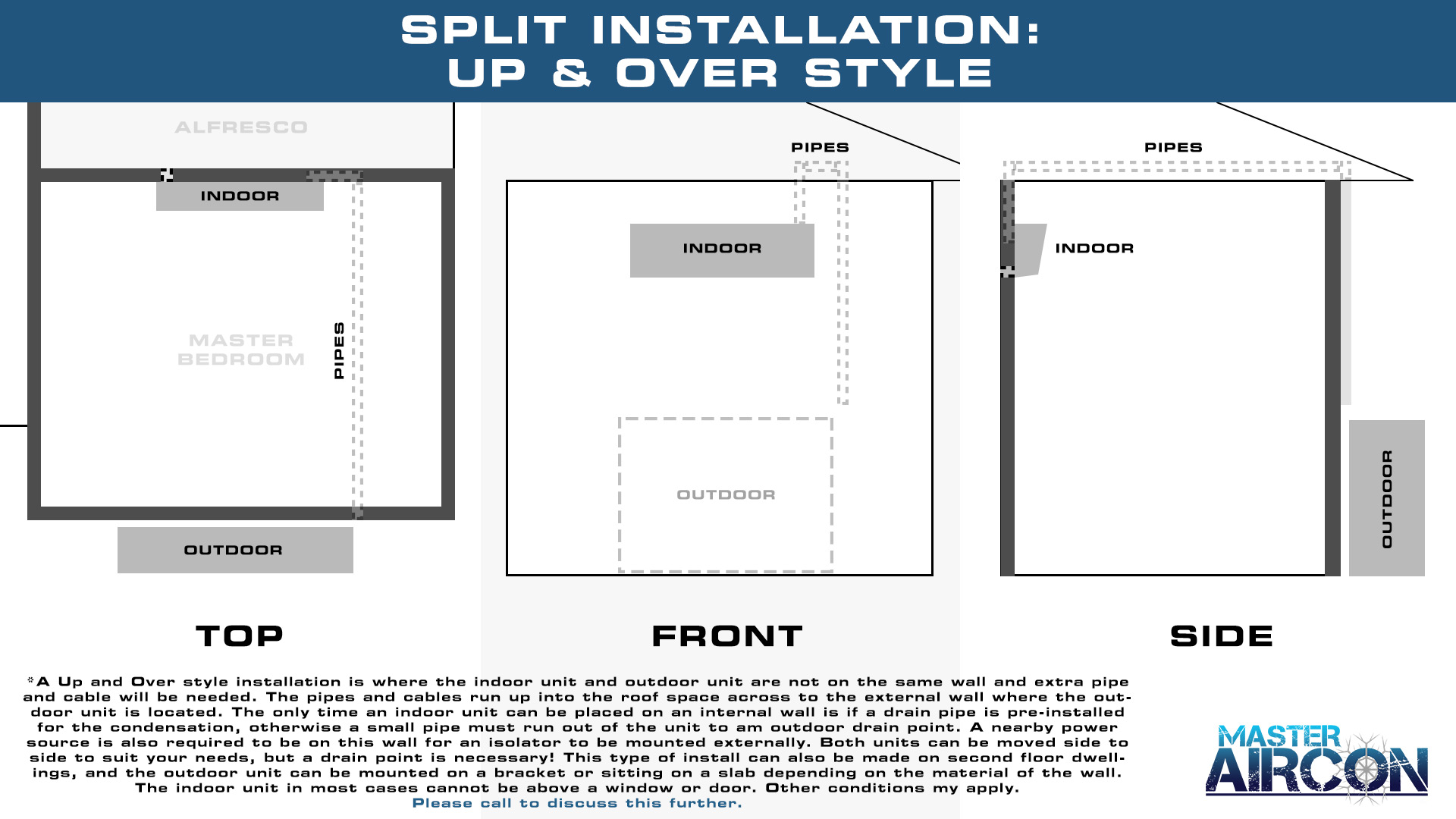

Up & Over Installations

*An Up and Over style installation is where the indoor unit and outdoor unit are not on the same wall and extra pipe and cable will be needed. The pipes and cables run up into the roof space across to the external wall where the outdoor unit is located. The only time an indoor unit can be placed on an internal wall is if a drain pipe is pre-installed for the condensation, otherwise a small pipe must run out of the unit to am outdoor drain point. A nearby power source is also required to be on this wall for an isolator to be mounted externally. Both units can be moved side to side to suit your needs, but a drain point is necessary!

This type of install can also be made on second floor dwellings, and the outdoor unit can be mounted on a bracket or sitting on a slab depending on the material of the wall. The indoor unit in most cases cannot be above a window or door.

*Other conditions may apply. Please call or contact us to discuss this further or book a quote.

Up and over Split Air Conditioner installations Gold Coast
https://www.masteraircon.com.au/wp-content/uploads/2020/08/MAC_2020_specials_split_v1_sml800_july.jpg

Inverter Split System Installations

Ducted-less inverter split systems are mounted to your indoor wall and are piped and cabled to a unit outside your home. These are great cost effective options for bedrooms, studies and living areas, and are generally faster to install or replace.
https://www.masteraircon.com.au/wp-content/uploads/2018/06/split_install_sample-1.png
Cooling Calculator | Air Con Calculator | Heating Calculator

What Size Split System Do I Need?

Room Length : 0 m

Room Width : 0 m

Room Height
  • 2.7m or less
  • More than 2.7m
Does the room have west facing glass? *
    Yes No
Is the room insulated? *
    Yes No
Result:
Brand kW Model Price from (installed)

Disclaimer: This calculator is to be used as an indicative guide only. Sizing is based on cooling load only.

Since there are many variables which can effect the size of unit required in your home, we recommend you Contact Us if you would like a more accurate assessment of your requirements.

Prices shown are for standard installation only, single storey back to back style within 4m of the indoor unit, including electrical. Extras will apply for non standard installations.
