Air Conditioner
Installations

Not sure how to go about choosing an Air-Conditioner and what kind of installation you need? Look no further! Master Aircon has assembled the below tools and information to help you begin the quote and installation process. Or simply book a quote or service from the buttons provided
Online Enquiry powered by ServiceM8
Online Enquiry powered by ServiceM8

Ducted Aircon Installations

Ducted systems have a longer and more cumbersome installation. Ducted systems have an indoor unit in your ceiling space which is plumbed to an outdoor unit. The hot or cold air produced is distributed throughout your premises through ducting in your ceiling.
https://www.masteraircon.com.au/wp-content/uploads/2018/06/ducted_install_sample-1.png

Quick Reference Chart

This chart is for quick reference and should be used as a guide only. It is based on cooling areas not the sqm(m2) size of your home as you don’t always cool the bathrooms, laundry, pantry, garage and some other spaces. Also it does not allow for other heat sources like western facing windows, and large gatherings of people.

For more information and a comprehensive ducted aircon quote, please call or contact us at Master Aircon.
AREA SIZE (m2) 2.4m CEILING 2.7m CEILING 3.0m CEILING
50m2 7.5kw 8kw 8.5kw
60m2 9kw 9.6kw 10.2kw
70m2 10.5kw 11.2kw 11.9kw
80m2 12kw 12.8kw 13.6kw
90m2 13.5kw 14.4kw 15.3kw
100m2 15kw 16kw 17kw
110m2 16.5kw 17.6kw 18.7kw
120m2 18kw 19.2kw 20.4kw
130m2 19.5kw 20.8kw 22.1kw
140m2 21kw 22.4kw 23.8kw
150m2 22.5kw 24kw 25.5kw
160m2 24kw 25.6kw 27.2kw
170m2 25.5kw 27.2kw 28.9kw

Standard Layouts:

Small Homes – 4 to 5 Outlets – 5kw to 10kw Unit

These range from 5kw to 10kw and are great use in a granny flat or small home; for example, four system outlets could be Bed-1, Bed-2, and two outlets in the living area, while a five outlets system could be Bed-1, Bed-2, Bed-3 and two outlets in the living area.

With the size of the home you could use the 5kw ducted system on the four outlet but we do suggest using Zones, for example the two outlets that go to the bedrooms would go on one zone and the two oultets that go to the living area would go on the other zone. You would use this system as a  Day/Night system- meaning at night you would run the bedroom zones while the living area is off, then during the day you would run the living area zone and have the bedroom zone off. This is done due to the fact that the 5kw system isn’t large enough to do the entire home at once.

Click here to check out the different type of zone systems we supply for more information.
These are a guide only, we still highly recommended visiting your home to help you with this process and carrying out a comprehensive quotation. Contact Us

Small ducted Air Conditioner installations Gold Coast
Medium Homes – 6 to 7 Outlets – 10kw to 14kw Unit

These range from 10kw to 14kw and are great use in a medium size home or small homes that want to have the ability to use all areas on at one time

For example six system outlets could be Bed-1, Bed-2, Bed-3, Study/Bed-4 and two outlets in the living area, while a seven outlets system could be Bed-1, Bed-2, Bed-3 Bed-4, Study or have two to three outlets in the living area.

Again using a zone system is a great way to have the ability to isolate different areas at a time.

Click here to check out the different type of zone systems we supply for more information.
These are a guide only, we still highly recommended visiting your home to help you with this process and carrying out a comprehensive quotation. Contact Us

Medium ducted Air Conditioner installations Gold Coast
Large Homes – 8 to 9 Outlets – 14 to 16kw Unit

Ranging from 14kw to 16kw great use in a larger homes, by this we mean the home may have a media room or extra formal lounge room, or in the case of the house being two storey a seperate rumpus upstairs.

However if the home is two storey its best to be a done while the home is getting built, this way it ensures we are able to get the ducting from the top floor down to the bottom floor.

For example eight system outlets could be Bed-1, Bed-2, Bed-3, Bed-4/ Study, Formal Lounge, Media and two outlets in the living area,

While a nine outlets system could be Bed-1, Bed-2, Bed-3 Bed-4/Study, Formal Lounge, Media, Rumpus or have two to three outlets in the living area. Again using a zone system is a great way to have the ability to isolate different areas at a time.

Click here to check out the different type of zone systems we supply for more information.
These are a guide only, we still highly recommended visiting your home to help you with this process and carrying out a comprehensive quotation. Contact Us

Large ducted Air Conditioner installations Gold Coast
Extra Large Homes – 9+ Outlets – 16kw to 25kw Unit

Ranging from 16kw and higher, great use in a extra larger homes, by this we mean the homes that are normally multiple storey and have many other rooms like guest room, office, formal lounges room or upstairs sitting and rumpus rooms.

For example nine outlets system could be Bed-1, Bed-2, Bed-3 Bed-4/Study, Formal Lounge, Media, Rumpus or have two to three outlets in the living area. While a 10 outlets or more system could be Bed-1, Bed-2, Bed-3 Bed-4, Bed 5, Study/ Office, Formal Lounge, Media, Rumpus, have two to three outlets in the living area. The list goes on.

Again using a zone system is a great way to have the ability to isolate different areas at a time.

Click here to check out the different type of zone systems we supply for more information.
These are a guide only, we still highly recommended visiting your home to help you with this process and carrying out a comprehensive quotation. Contact Us

Extra Large ducted Air Conditioner installations Gold Coast

Inverter Split System Installations

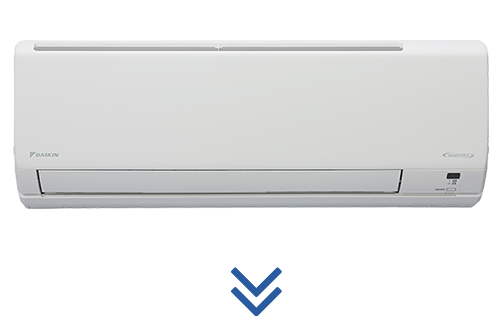

Ducted-less inverter split systems are mounted to your indoor wall and are piped and cabled to a unit outside your home. These are great cost effective options for bedrooms, studies and living areas, and are generally faster to install or replace.
https://www.masteraircon.com.au/wp-content/uploads/2018/06/split_install_sample-1.png
Cooling Calculator | Air Con Calculator | Heating Calculator

What Size Split System Do I Need?

Room Length : 0 m

Room Width : 0 m

Room Height
  • 2.7m or less
  • More than 2.7m
Does the room have west facing glass? *
    Yes No
Is the room insulated? *
    Yes No
Result:
Brand kW Model Price from (installed)

Disclaimer: This calculator is to be used as an indicative guide only. Sizing is based on cooling load only.

Since there are many variables which can effect the size of unit required in your home, we recommend you Contact Us if you would like a more accurate assessment of your requirements.

Prices shown are for standard installation only, single storey back to back style within 4m of the indoor unit, including electrical. Extras will apply for non standard installations.

Installation Types:

Back to Back Installations

*A typical back to back installation requires the indoor and outdoor unit being parallel “back to back” on the same external wall within 3 metres of each other (can be extended). A hole in the wall is made to connect the gas pipes and electrical cables, which are capped for weatherproofing and aesthetics. A nearby power source is also required to be on this wall for an isolator to be mounted externally.

However the outdoor unit can be slightly moved side to side to suit your needs. This type of install can also be made on second floor dwellings, and the outdoor unit can be mounted on a bracket or sitting on a slab depending on the material of the wall. The indoor unit in most cases cannot be above a window or door.

*Other conditions may apply. Please call or contact us to discuss this further or book a quote.

Back to back Split Air Conditioner installations Gold Coast
Back to Side Installations

*A Back to Side split installation is where the indoor unit is 90 degrees to the outdoor unit. Usually on an internal wall, hard up to the external wall where the outdoor unit is located. Pipes an electrical cable penetrated the side of the unit, goes out through the wall, down the capping and connects to the outdoor unit.

The outdoor unit can be mounted on a bracket or slab depending on your wishes. This can also be done on multi storey dwellings with additional pipe and cables. A power supply is required nearby on the external wall.

*Other conditions may apply. Please call or contact us to discuss this further or book a quote.

Back to Side Split Air Conditioner installations Gold Coast
Up & Over Installations

*An Up and Over style installation is where the indoor unit and outdoor unit are not on the same wall and extra pipe and cable will be needed. The pipes and cables run up into the roof space across to the external wall where the outdoor unit is located. The only time an indoor unit can be placed on an internal wall is if a drain pipe is pre-installed for the condensation, otherwise a small pipe must run out of the unit to am outdoor drain point. A nearby power source is also required to be on this wall for an isolator to be mounted externally. Both units can be moved side to side to suit your needs, but a drain point is necessary!

This type of install can also be made on second floor dwellings, and the outdoor unit can be mounted on a bracket or sitting on a slab depending on the material of the wall. The indoor unit in most cases cannot be above a window or door.

*Other conditions may apply. Please call or contact us to discuss this further or book a quote.

Up and over Split Air Conditioner installations Gold Coast
